Atelier professionnel

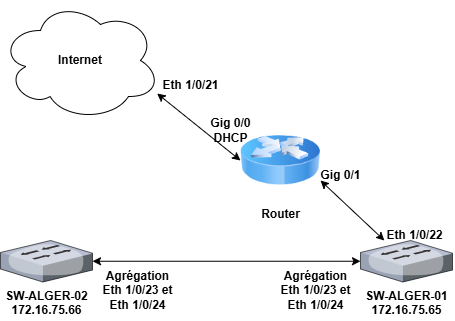

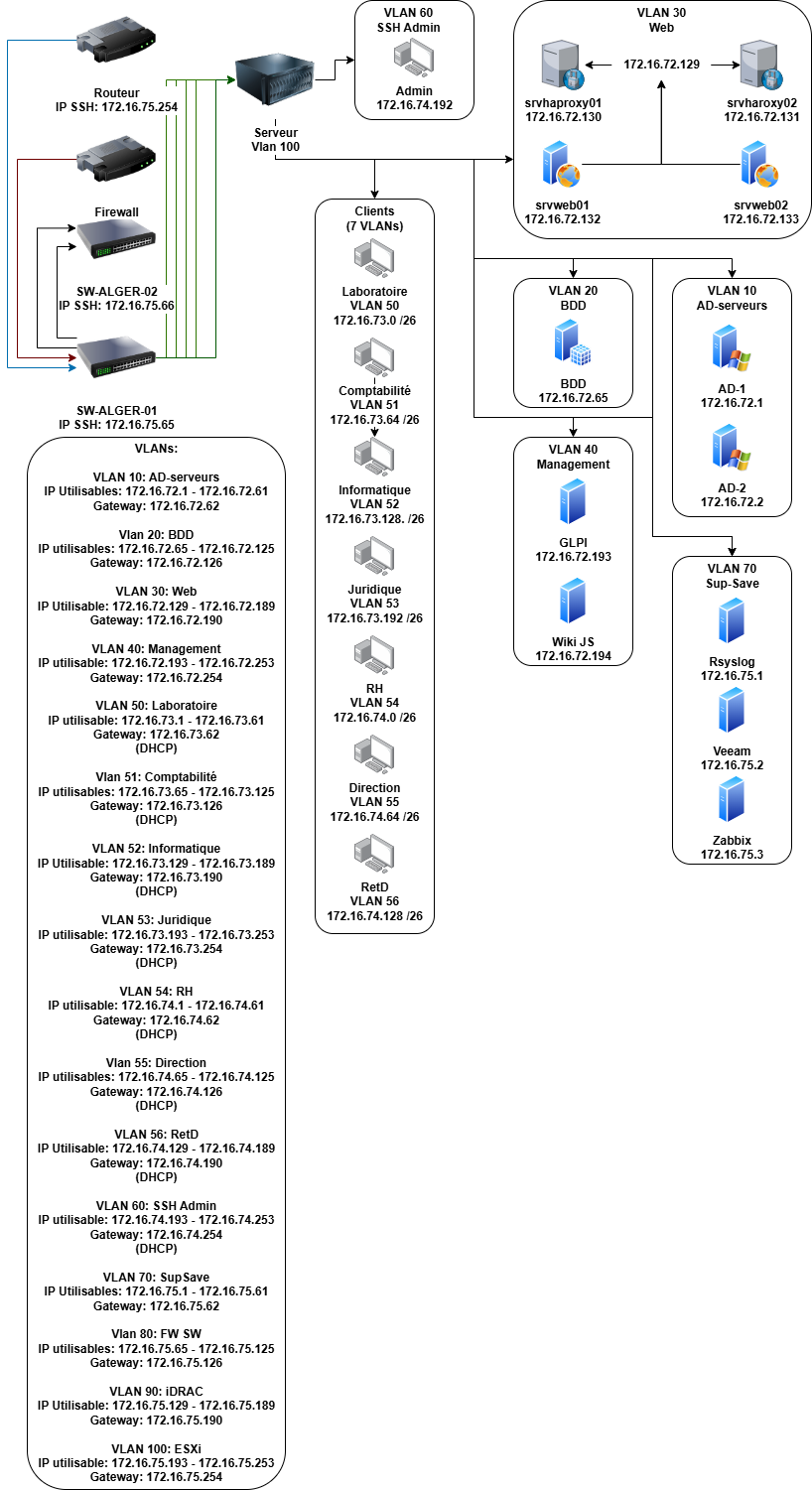

Building configuration...

Current configuration : 5815 bytes
!
version 15.2
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname ROUTEUR-ALGER
!
boot-start-marker
boot-end-marker
!
!
!
no aaa new-model
!
ip cef
!
!
!
!
!
!
no ip domain lookup
ip domain name algermedilab.lan
no ipv6 cef
!
multilink bundle-name authenticated
!
!
!
!
license udi pid CISCO2921/K9 sn FCZ16337XXB
license boot module c2900 technology-package securityk9
!
!
username henri privilege 15 secret 4 .XYBR.m0mfZZwls7iLZ17wFU1GXWOMleWRVfm9o4IcY
username rywan privilege 15 secret 4 3wQig9WEhwQW1NqQBu8Y3t8LrAzWx7yXvW2ktHg9s2Y
username allan privilege 15 secret 4 j5vzPvOY6hf2s8MWQEcWTsyT.4.DP/x66vNYKtf6P56
username leonard privilege 15 secret 4 rPpd8SLrxetje7jDBpdirfpQ5kg9Z6QrYw8AqmZLI2U
!
redundancy
!
!
!
!
!
ip ssh version 2
ip ssh dh min size 2048
csdb tcp synwait-time 30
csdb tcp idle-time 3600
csdb tcp finwait-time 5
csdb tcp reassembly max-memory 1024
csdb tcp reassembly max-queue-length 16
csdb udp idle-time 30
csdb icmp idle-time 10
csdb session max-session 65535
!
!
!
!
!
!
!
!
!
interface Loopback0
 no ip address
!
interface Embedded-Service-Engine0/0
 no ip address
 shutdown
!
interface GigabitEthernet0/0
 ip address dhcp
 ip nat outside
 ip virtual-reassembly in
 duplex auto
 speed auto
!
interface GigabitEthernet0/1
 no ip address
 ip nat inside
 ip virtual-reassembly in
 duplex auto
 speed auto
!
interface GigabitEthernet0/1.10
 encapsulation dot1Q 10
 ip address 172.16.72.62 255.255.255.192
 ip nat inside
 ip virtual-reassembly in
!
interface GigabitEthernet0/1.20
 encapsulation dot1Q 20
 ip address 172.16.72.126 255.255.255.192
 ip nat inside
 ip virtual-reassembly in
!
interface GigabitEthernet0/1.30
 encapsulation dot1Q 30
 ip address 172.16.72.190 255.255.255.192
 ip nat inside
 ip virtual-reassembly in
!
interface GigabitEthernet0/1.40
 encapsulation dot1Q 40
 ip address 172.16.72.254 255.255.255.192
 ip nat inside
 ip virtual-reassembly in
!
interface GigabitEthernet0/1.50
 encapsulation dot1Q 50
 ip address 172.16.73.62 255.255.255.192
 ip helper-address 172.16.72.2
 ip helper-address 172.16.72.1
 ip nat inside
 ip virtual-reassembly in
!
interface GigabitEthernet0/1.51
 encapsulation dot1Q 51
 ip address 172.16.73.126 255.255.255.192
 ip helper-address 172.16.72.2
 ip helper-address 172.16.72.1
 ip nat inside
 ip virtual-reassembly in
!
interface GigabitEthernet0/1.52
 encapsulation dot1Q 52
 ip address 172.16.73.190 255.255.255.192
 ip helper-address 172.16.72.2
 ip helper-address 172.16.72.1
 ip nat inside
 ip virtual-reassembly in
!
interface GigabitEthernet0/1.53
 encapsulation dot1Q 53
 ip address 172.16.73.254 255.255.255.192
 ip helper-address 172.16.72.2
 ip helper-address 172.16.72.1
 ip nat inside
 ip virtual-reassembly in
!
interface GigabitEthernet0/1.54
 encapsulation dot1Q 54
 ip address 172.16.74.62 255.255.255.192
 ip helper-address 172.16.72.2
 ip helper-address 172.16.72.1
 ip nat inside
 ip virtual-reassembly in
!
interface GigabitEthernet0/1.55
 encapsulation dot1Q 55
 ip address 172.16.74.126 255.255.255.192
 ip helper-address 172.16.72.2
 ip helper-address 172.16.72.1
 ip nat inside
 ip virtual-reassembly in
!
interface GigabitEthernet0/1.56
 encapsulation dot1Q 56
 ip address 172.16.74.190 255.255.255.192
 ip helper-address 172.16.72.2
 ip helper-address 172.16.72.1
 ip nat inside
 ip virtual-reassembly in
!
interface GigabitEthernet0/1.60
 encapsulation dot1Q 60
 ip address 172.16.74.254 255.255.255.192
 ip helper-address 172.16.72.2
 ip helper-address 172.16.72.1
 ip nat inside
 ip virtual-reassembly in
!
interface GigabitEthernet0/1.70
 encapsulation dot1Q 70
 ip address 172.16.75.62 255.255.255.192
 ip nat inside
 ip virtual-reassembly in
!
interface GigabitEthernet0/1.80
 encapsulation dot1Q 80
 ip address 172.16.75.126 255.255.255.192
 ip nat inside
 ip virtual-reassembly in
!
interface GigabitEthernet0/1.90
 encapsulation dot1Q 90
 ip address 172.16.75.190 255.255.255.192
 ip nat inside
 ip virtual-reassembly in
!
interface GigabitEthernet0/1.100
 encapsulation dot1Q 100
 ip address 172.16.75.254 255.255.255.192
 ip nat inside
 ip virtual-reassembly in
!
interface GigabitEthernet0/1.633
!
interface GigabitEthernet0/1.660
!
interface GigabitEthernet0/2
 no ip address
 shutdown
 duplex auto
 speed auto
!
ip forward-protocol nd
!
no ip http server
no ip http secure-server
!
ip nat inside source list 1 interface GigabitEthernet0/0 overload
ip route 0.0.0.0 0.0.0.0 10.63.12.253
!
ip access-list extended inter_vlan
 permit ip any any
ip access-list extended list1
 permit ip 172.16.72.0 0.0.7.255 any
!
access-list 1 permit 172.16.0.0 0.0.255.255
!
!
!
control-plane
!
!
banner login ^C
|_________________________________________________________________|
|            #ACCES NON AUTORISE STRICTEMENT INTERDIT#            |
|_________________________________________________________________|
| Ce routeur est reserve a un usage autorise uniquement           |
| Toute tentative d'acces non autorise sera poursuivie en justice |
| Tous les acces sont surveilles et enregistres                   |
| Si vous n'etes pas autorise a utiliser ce routeur,              |
| Veuillez vous deconnecter immediatement                         |
| En cas de probleme, contactez votre service informatique        |
|_________________________________________________________________|
|            #ACCES NON AUTORISE STRICTEMENT INTERDIT#            |
|_________________________________________________________________|
^C
!
line con 0
 login local
line aux 0
line 2
 no activation-character
 no exec
 transport preferred none
 transport input all
 transport output pad telnet rlogin lapb-ta mop udptn v120 ssh
 stopbits 1
line vty 0 4
 exec-timeout 0 0
 login local
 transport input telnet ssh
!
scheduler allocate 20000 1000
!
end

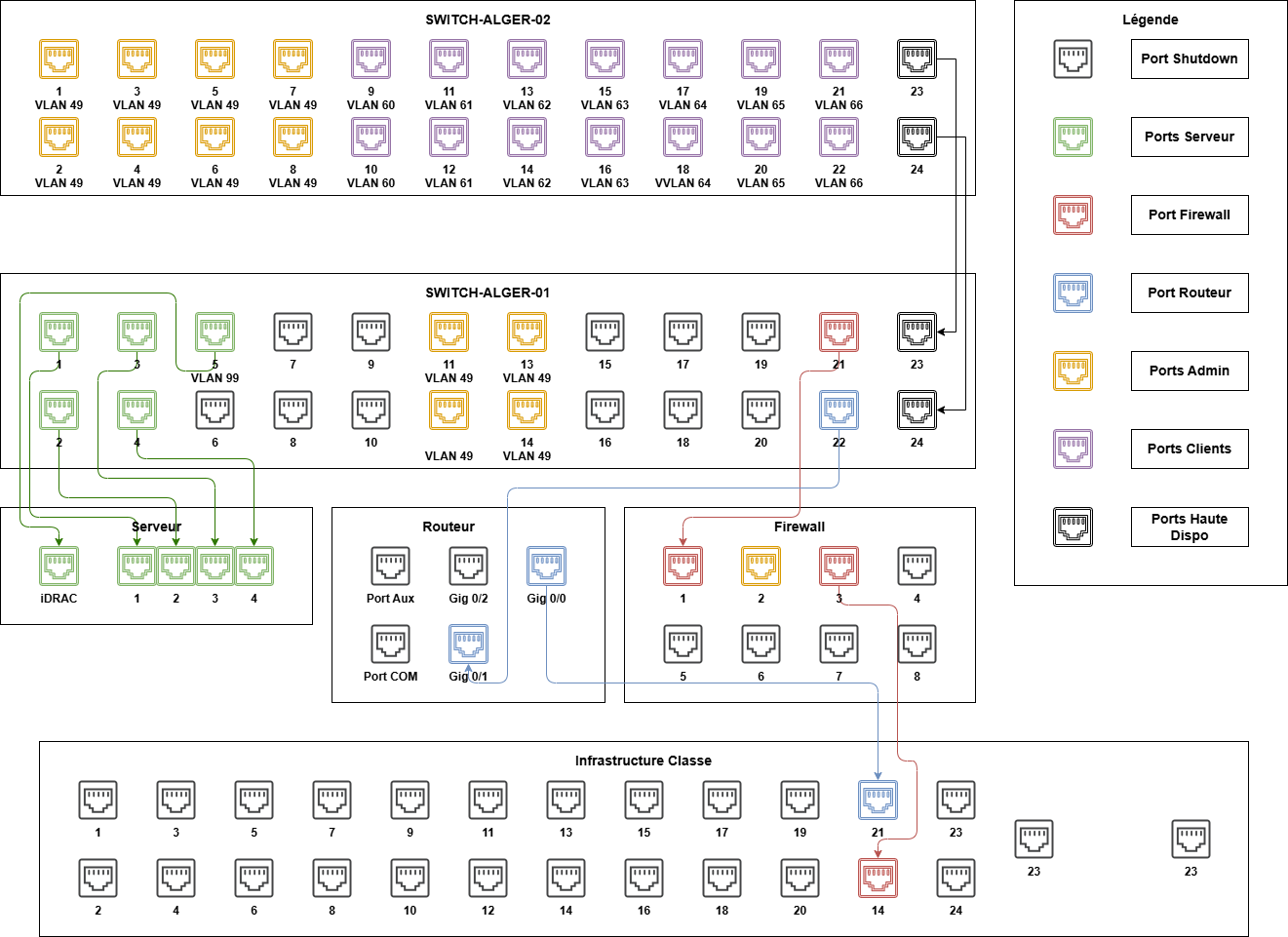

Building configuration...

Current configuration : 7006 bytes
!
version 12.2
no service pad
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname SW-ALGER-01
!
boot-start-marker
boot-end-marker
!
!
username henri privilege 15 secret 5 $1$X9gE$uFSFobs2SmLcmpyw3Klbg.
username riwan privilege 15 secret 5 $1$sW5Z$Mn95PfC8jdUtnId4BrY3M/
username allan privilege 15 secret 5 $1$k29v$gjZhbqQyZEluSngWB88kW/
username leonard privilege 15 secret 5 $1$jMoC$6udmrRQEnXHsaZ/nXaZzw0
!
!
no aaa new-model
switch 1 provision ws-c2960s-24ps-l
!
!
no ip domain-lookup
ip domain-name algermedilab.lan
!
!
crypto pki trustpoint TP-self-signed-2803096448
 enrollment selfsigned
 subject-name cn=IOS-Self-Signed-Certificate-2803096448
 revocation-check none
 rsakeypair TP-self-signed-2803096448
!
!
crypto pki certificate chain TP-self-signed-2803096448
 certificate self-signed 01
  30820254 308201BD A0030201 02020101 300D0609 2A864886 F70D0101 04050030
  31312F30 2D060355 04031326 494F532D 53656C66 2D536967 6E65642D 43657274
  69666963 6174652D 32383033 30393634 3438301E 170D3933 30333031 30303032
  34305A17 0D323030 31303130 30303030 305A3031 312F302D 06035504 03132649
  4F532D53 656C662D 5369676E 65642D43 65727469 66696361 74652D32 38303330
  39363434 3830819F 300D0609 2A864886 F70D0101 01050003 818D0030 81890281
  8100AD2A BE91D448 A6EE8828 D578109D 8E4E09BF E6D29FCF D76CBBA1 74970A11
  CE9F2F69 DF12225F 41F88EC6 0FE81A55 8C262B02 8587808D 39591D5A 3AB896CE
  551ED1A6 9AB12CAD D7115E31 3A015BDF 8D0F09D8 4581CFE6 F2271DE7 48085897
  D4E9EFAF 44A5EB4C 2B6A0EFF A4A12951 80B1D8D8 890F6495 0396E0FF F9EDBCD7
  A8350203 010001A3 7C307A30 0F060355 1D130101 FF040530 030101FF 30270603
  551D1104 20301E82 1C53572D 414C4745 522D3031 2E616C67 65726D65 64696C61
  622E6C61 6E301F06 03551D23 04183016 80149BA0 A9FE6383 99CA5002 4884D837
  454411AC C8BB301D 0603551D 0E041604 149BA0A9 FE638399 CA500248 84D83745
  4411ACC8 BB300D06 092A8648 86F70D01 01040500 03818100 70080225 D1323FCF
  3D33EF5B 33BB68C7 D08883C0 6741941D B0E434EE 2312BDE0 102B89D6 E7374046
  BC0E054F 664A9370 0913AD9F FAF169E5 BF4187C9 BCAA7765 2106B5E1 65464D8E
  133A8E29 25173EE4 426E5693 6FA2DCA1 B3634780 1CA170F1 A9176D21 D85B1E6B
  C34B228F FE1A8665 47BCB99E D65D0DC0 D291AB46 48438C1A
  quit
spanning-tree mode pvst
spanning-tree extend system-id
!
!
!
!
vlan internal allocation policy ascending
!
ip ssh time-out 60
ip ssh source-interface Vlan51
ip ssh version 2
!
!
interface Port-channel1
 description LACP_PortChannel
 switchport mode trunk
!
interface Port-channel2
 switchport trunk allowed vlan 10,20,30,40,50-56,60,70,80,90,100
 switchport mode trunk
!
interface FastEthernet0
 no ip address
 shutdown
!
interface GigabitEthernet1/0/1
 switchport trunk allowed vlan 10,20,30,40,50-56,60,70,80,90,100
 switchport mode trunk
 spanning-tree portfast
 channel-group 1 mode active
!
interface GigabitEthernet1/0/2
 switchport trunk allowed vlan 10,20,30,40,50-56,60,70,80,90,100
 switchport mode trunk
 spanning-tree portfast
 channel-group 1 mode active
!
interface GigabitEthernet1/0/3
 switchport trunk allowed vlan 10,20,30,40,50-56,60,70,80,90,100
 switchport mode trunk
 spanning-tree portfast
 channel-group 1 mode active
!
interface GigabitEthernet1/0/4
 switchport trunk allowed vlan 10,20,30,40,50-56,60,70,80,90,100
 switchport mode trunk
 spanning-tree portfast
 channel-group 1 mode active
!
interface GigabitEthernet1/0/5
 switchport mode access
 spanning-tree portfast
!
interface GigabitEthernet1/0/6
 shutdown
 spanning-tree portfast
!
interface GigabitEthernet1/0/7
 shutdown
 spanning-tree portfast
!
interface GigabitEthernet1/0/8
 shutdown
 spanning-tree portfast
!
interface GigabitEthernet1/0/9
 shutdown
 spanning-tree portfast
!
interface GigabitEthernet1/0/10
 shutdown
 spanning-tree portfast
!
interface GigabitEthernet1/0/11
 switchport access vlan 60
 switchport mode access
 spanning-tree portfast
!
interface GigabitEthernet1/0/12
 switchport access vlan 60
 switchport mode access
 spanning-tree portfast
!
interface GigabitEthernet1/0/13
 switchport access vlan 60
 switchport mode access
 spanning-tree portfast
!
interface GigabitEthernet1/0/14
 switchport access vlan 60
 switchport mode access
 spanning-tree portfast
!
interface GigabitEthernet1/0/15
 shutdown
 spanning-tree portfast
!
interface GigabitEthernet1/0/16
 shutdown
 spanning-tree portfast
!
interface GigabitEthernet1/0/17
 shutdown
 spanning-tree portfast
!
interface GigabitEthernet1/0/18
 shutdown
 spanning-tree portfast
!
interface GigabitEthernet1/0/19
 shutdown
 spanning-tree portfast
!
interface GigabitEthernet1/0/20
 shutdown
 spanning-tree portfast
!
interface GigabitEthernet1/0/21
 switchport trunk allowed vlan 10,20,30,40,50-56,60,70,80,90,100
 switchport mode trunk
 shutdown
 spanning-tree portfast
!
interface GigabitEthernet1/0/22
 switchport trunk allowed vlan 10,20,30,40,50-56,60,70,80,90,100
 switchport mode trunk
 spanning-tree portfast
!
interface GigabitEthernet1/0/23
 switchport trunk allowed vlan 10,20,30,40,50-56,60,70,80,90,100
 switchport mode trunk
 spanning-tree portfast
 channel-group 2 mode active
!
interface GigabitEthernet1/0/24
 switchport trunk allowed vlan 10,20,30,40,50-56,60,70,80,90,100
 switchport mode trunk
 spanning-tree portfast
 channel-group 2 mode active
!
interface GigabitEthernet1/0/25
 shutdown
 spanning-tree portfast
!
interface GigabitEthernet1/0/26
 shutdown
 spanning-tree portfast
!
interface GigabitEthernet1/0/27
 shutdown
 spanning-tree portfast
!
interface GigabitEthernet1/0/28
 shutdown
 spanning-tree portfast
!
interface Vlan80
 ip address 172.16.75.65 255.255.255.192
!
ip default-gateway 172.16.75.254
ip http server
ip http secure-server
banner login ^C
|_________________________________________________________________|
|            #ACCES NON AUTORISE STRICTEMENT INTERDIT#            |
|_________________________________________________________________|
| Ce switch est reserve a un usage autorise uniquement           |
| Toute tentative d'acces non autorise sera poursuivie en justice |
| Tous les acces sont surveilles et enregistres                   |
| Si vous n'etes pas autorise a utiliser ce routeur,              |
| Veuillez vous deconnecter immediatement                         |
| En cas de probleme, contactez votre service informatique        |
|_________________________________________________________________|
|            #ACCES NON AUTORISE STRICTEMENT INTERDIT#            |
|_________________________________________________________________|
^C
!
line con 0
 login local
line vty 0 4
 exec-timeout 5 0
 login local
 transport input ssh
line vty 5 15
 login
!
end

Building configuration...

Current configuration : 5769 bytes
!
! Last configuration change at 03:36:22 UTC Wed Apr 13 2011
! NVRAM config last updated at 03:50:28 UTC Fri Apr 1 2011
!
version 15.0
no service pad
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname SW-ALGER-02
!
boot-start-marker
boot-end-marker
!
!
username Henri privilege 15 secret 4 .XYBR.m0mfZZwls7iLZ17wFU1GXWOMleWRVfm9o4IcY
username Riwan privilege 15 secret 4 3wQig9WEhwQW1NqQBu8Y3t8LrAzWx7yXvW2ktHg9s2Y
username Leonard privilege 15 secret 4 rPpd8SLrxetje7jDBpdirfpQ5kg9Z6QrYw8AqmZLI2U
username Allan privilege 15 secret 4 j5vzPvOY6hf2s8MWQEcWTsyT.4.DP/x66vNYKtf6P56
no aaa new-model
switch 1 provision ws-c2960s-24ts-l
!
!
ip domain-name algermedilab.lan
!
!
crypto pki trustpoint TP-self-signed-514076800
 enrollment selfsigned
 subject-name cn=IOS-Self-Signed-Certificate-514076800
 revocation-check none
 rsakeypair TP-self-signed-514076800
!
!
crypto pki certificate chain TP-self-signed-514076800
 certificate self-signed 02
  30820229 30820192 A0030201 02020102 300D0609 2A864886 F70D0101 05050030
  30312E30 2C060355 04031325 494F532D 53656C66 2D536967 6E65642D 43657274
  69666963 6174652D 35313430 37363830 30301E17 0D313130 33333030 31343134
  335A170D 32303031 30313030 30303030 5A303031 2E302C06 03550403 1325494F
  532D5365 6C662D53 69676E65 642D4365 72746966 69636174 652D3531 34303736
  38303030 819F300D 06092A86 4886F70D 01010105 0003818D 00308189 02818100
  C7C2D5D1 350535E1 3A2C51EA A01F02ED CB3A6698 0B4E4561 854B76F0 87C39F38
  20FF1FAE 4427C62C 3AEBEB06 76F62381 A9C670EB 4FCC2F9D 98FE2AF0 37E6861A
  EC393E85 9F58CBBF CA476CA5 C44076CD 38300CDF D3D5C223 0B4D608A 13D29B3F
  F8156F54 A2BC09DB 1F6D6E92 23D2D221 2BC901A4 0848DA32 C12B65E9 F78B35E7
  02030100 01A35330 51300F06 03551D13 0101FF04 05300301 01FF301F 0603551D
  23041830 16801423 77FEA13E 8DAA304D E41CF18B B1616975 04946730 1D060355
  1D0E0416 04142377 FEA13E8D AA304DE4 1CF18BB1 61697504 9467300D 06092A86
  4886F70D 01010505 00038181 0047F809 4F96DBDD F0995B9E 0332A033 EDD1ECE0
  05A79248 C9FD19F8 C0946ECA 85A573DB DD73CC04 72C0235A 2CDD1D65 A7963279
  3576D19C 9F1BB4C0 67EBA195 302D838C CADF4271 B5D0F264 6946E10D 383138A1
  6F573E91 6BDA49B3 0584275F FFFC8DFB F02C7A2D 10E47A25 94124429 72057F00
  001B0F14 0654ADAA 8E0CD242 B3
        quit
spanning-tree mode pvst
spanning-tree extend system-id
!
!
!
!
!
!
!
!
!
vlan internal allocation policy ascending
!
ip ssh version 2
ip ssh dh min size 2048
!
!
!
!
!
!
!
!
!
!
interface Port-channel1
 description Agregat_entre_switch
 switchport mode trunk
!
interface FastEthernet0
 no ip address
 shutdown
!
interface GigabitEthernet1/0/1
 switchport access vlan 60
 switchport mode access
 spanning-tree portfast
!
interface GigabitEthernet1/0/2
 switchport access vlan 60
 switchport mode access
 spanning-tree portfast
!
interface GigabitEthernet1/0/3
 switchport access vlan 60
 switchport mode access
 spanning-tree portfast
!
interface GigabitEthernet1/0/4
 switchport access vlan 60
 switchport mode access
 spanning-tree portfast
!
interface GigabitEthernet1/0/5
 switchport access vlan 60
 switchport mode access
 spanning-tree portfast
!
interface GigabitEthernet1/0/6
 switchport access vlan 60
 switchport mode access
 spanning-tree portfast
!
interface GigabitEthernet1/0/7
 switchport access vlan 60
 switchport mode access
 spanning-tree portfast
!
interface GigabitEthernet1/0/8
 switchport access vlan 60
 switchport mode access
 spanning-tree portfast
!
interface GigabitEthernet1/0/9
 switchport access vlan 50
 switchport mode access
 spanning-tree portfast
!
interface GigabitEthernet1/0/10
 switchport access vlan 50
 switchport mode access
 spanning-tree portfast
!
interface GigabitEthernet1/0/11
 switchport access vlan 51
 switchport mode access
 spanning-tree portfast
!
interface GigabitEthernet1/0/12
 switchport access vlan 51
 switchport mode access
 spanning-tree portfast
!
interface GigabitEthernet1/0/13
 switchport access vlan 52
 switchport mode access
 spanning-tree portfast
!
interface GigabitEthernet1/0/14
 switchport access vlan 52
 switchport mode access
 spanning-tree portfast
!
interface GigabitEthernet1/0/15
 switchport access vlan 53
 switchport mode access
 spanning-tree portfast
!
interface GigabitEthernet1/0/16
 switchport access vlan 53
 switchport mode access
 spanning-tree portfast
!
interface GigabitEthernet1/0/17
 switchport access vlan 54
 switchport mode access
 spanning-tree portfast
!
interface GigabitEthernet1/0/18
 switchport access vlan 54
 switchport mode access
 spanning-tree portfast
!
interface GigabitEthernet1/0/19
 switchport access vlan 55
 switchport mode access
 spanning-tree portfast
!
interface GigabitEthernet1/0/20
 switchport access vlan 55
 switchport mode access
 spanning-tree portfast
!
interface GigabitEthernet1/0/21
 switchport access vlan 56
 switchport mode access
 spanning-tree portfast
!
interface GigabitEthernet1/0/22
 switchport access vlan 56
 switchport mode access
 spanning-tree portfast
!
interface GigabitEthernet1/0/23
 switchport mode trunk
 spanning-tree portfast
 channel-group 1 mode active
!
interface GigabitEthernet1/0/24
 switchport mode trunk
 spanning-tree portfast
 channel-group 1 mode active
!
interface GigabitEthernet1/0/25
 shutdown
 spanning-tree portfast
!
interface GigabitEthernet1/0/26
 shutdown
 spanning-tree portfast
!
interface GigabitEthernet1/0/27
 shutdown
 spanning-tree portfast
!
interface GigabitEthernet1/0/28
 shutdown
 spanning-tree portfast
!
interface Vlan80
 ip address 172.16.75.66 255.255.255.192
!
ip http server
ip http secure-server
!
banner login ^C
|_________________________________________________________________|
|            #ACCES NON AUTORISE STRICTEMENT INTERDIT#            |
|_________________________________________________________________|
| Ce switch est reserve a un usage autorise uniquement           |
| Toute tentative d'acces non autorise sera poursuivie en justice |
| Tous les acces sont surveilles et enregistres                   |
| Si vous n'etes pas autorise a utiliser ce routeur,              |
| Veuillez vous deconnecter immediatement                         |
| En cas de probleme, contactez votre service informatique        |
|_________________________________________________________________|
|            #ACCES NON AUTORISE STRICTEMENT INTERDIT#            |
|_________________________________________________________________|
^C
!
line con 0
line vty 0 4
 login local
 transport input ssh
line vty 5 15
 no login
 transport input none
!
end
